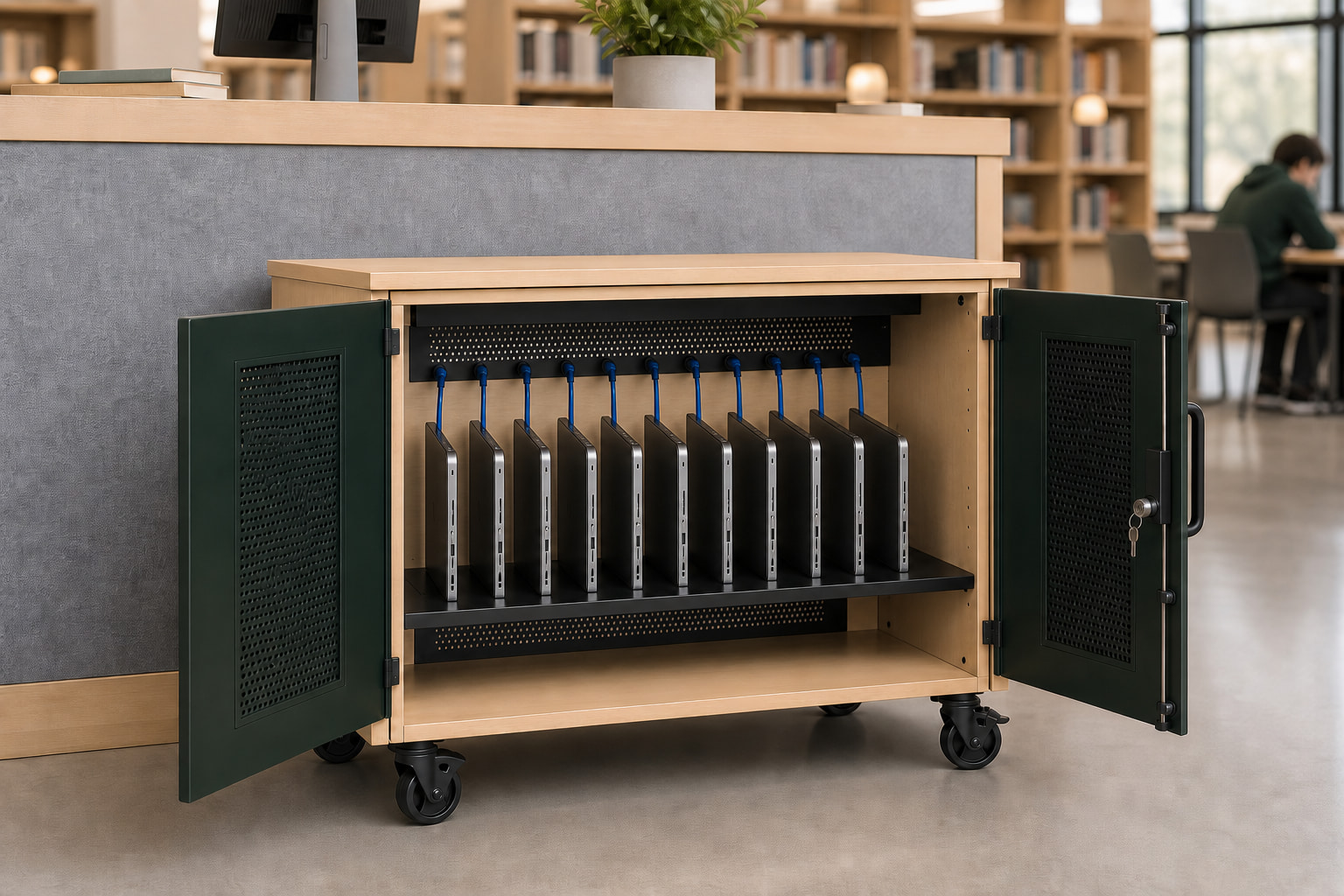

1 / 4Concept renderings. Exact capacity and construction are controlled by the Rev A technical specification.
AG-N12 · 12-device laptop & Chromebook charging cart
Nook 12
A compact, furniture-scale home for small shared fleets.
Institutional project pricing is quote-based. Freight, taxes, installation, options, and volume terms are separate.
- Capacity
- 12 devices
- Tier layout
- 12
- Overall size

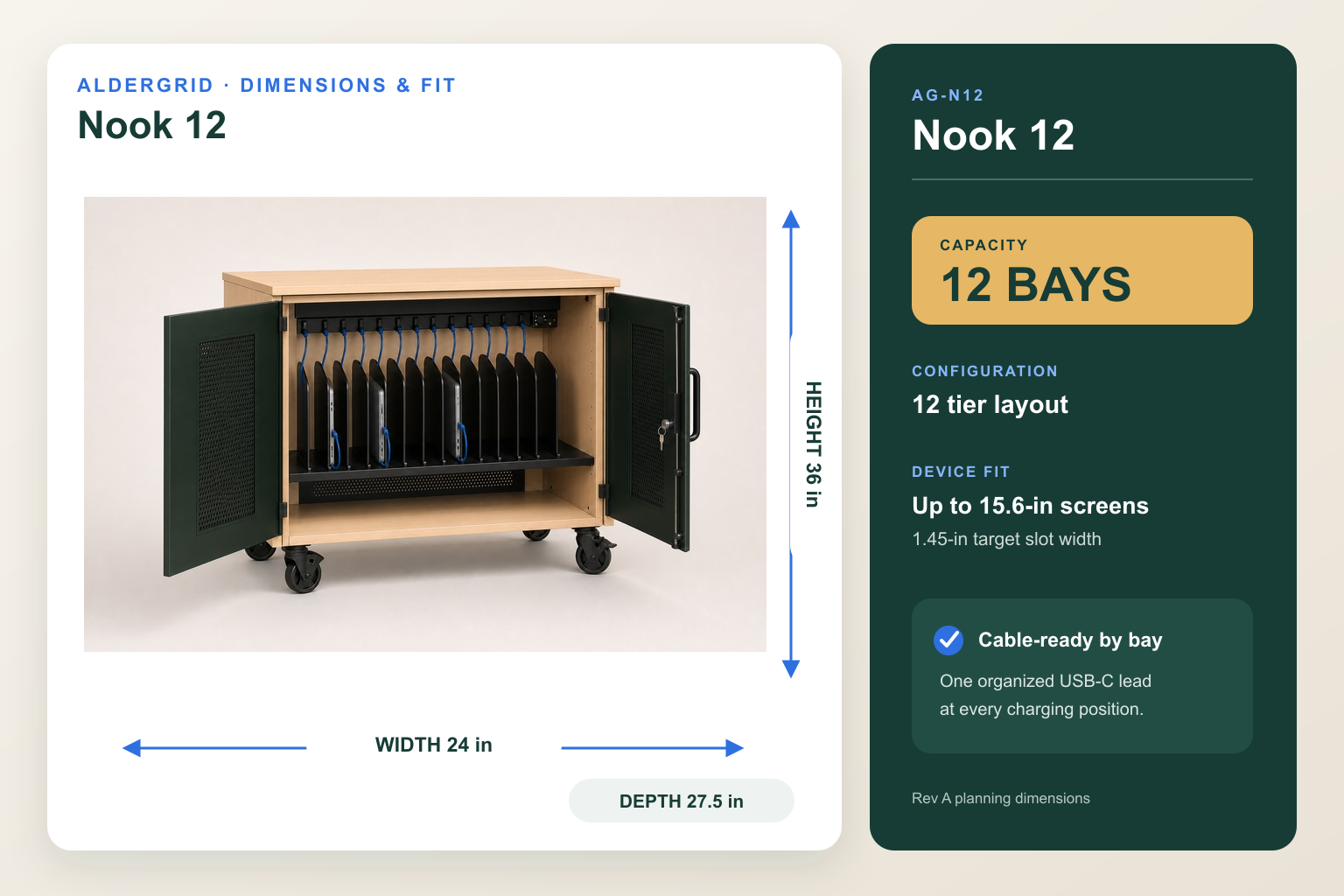

- 24 W × 27.5 D × 36 H in
- Device fit
- Up to 15.6-in screens
Built around the fleet
12 labeled bays. One calm routine.

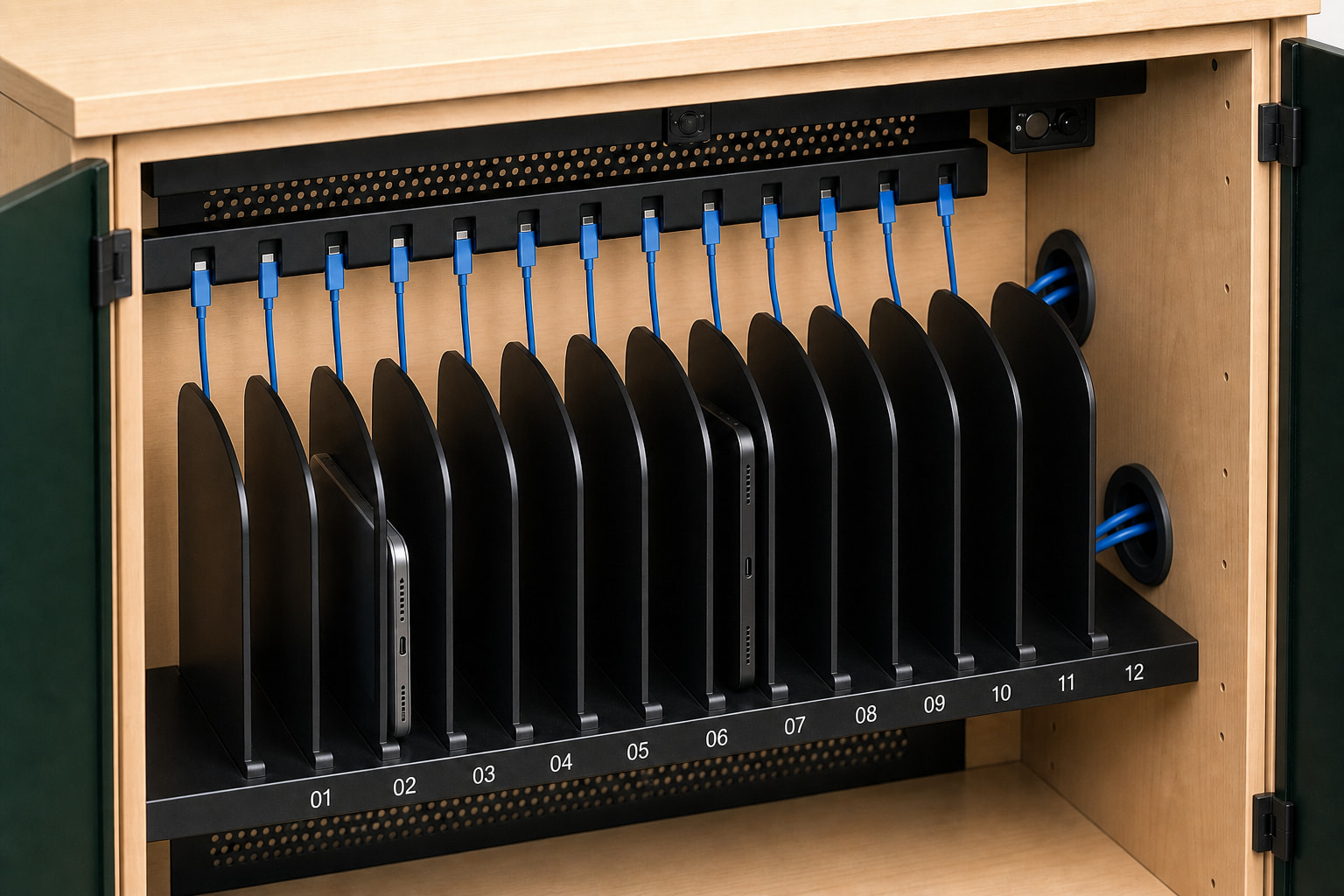

Libraries, special education rooms, nurse stations, and loaner fleets. Each bay receives an included, labeled USB-C lead; cabinet-level management allocates power across the fleet. Twin locking doors open 270 degrees for loading and service, while perforated steel shelves keep device weight and cable paths inside a replaceable metal system.
Fully assembled
Cabinet, casters, lock, cable set, and approved power package arrive integrated.
Serviceable by zones
12 power and cable zone(s), matched to the shelf layout.
Secure mobility
Three-point keyed lock, through-bolted handle, and four 5-inch casters.
Rev A specification
Planning dimensions and performance targets.
- SKU
- AG-N12
- Family
- Nook
- Capacity
- 12 bays
- Tier layout
- 12
- Overall envelope
- 24 W × 27.5 D × 36 H in
- Cabinet depth
- 23 in
- Target slot width
- 1.45 in
- Maximum screen
- 15.6 in
- Nominal cabinet allocation
- 780 W
- Per-port peak target
- 65 W
- Input target
- 120 VAC · 60 Hz · 12 A managed maximum
- Configuration
- Pre-wired USB-C PD · fully assembled
Certification gate
Final ratings, components, wiring, thermal limits, labels, and claims remain subject to qualified engineering and NRTL review. No UL, ETL, BIFMA, GREENGUARD, or medical-grade certification is claimed.
See the full safety approachAdd another size
Build a mixed-fleet project.
Compact, classroom, and high-density models share the same finish and operating logic.
