1 / 4Concept renderings. Exact capacity and construction are controlled by the Rev A technical specification.
AG-F45 · 45-device laptop & Chromebook charging cart
Fleet 45
A balanced high-density platform with three equal service zones.
Institutional project pricing is quote-based. Freight, taxes, installation, options, and volume terms are separate.
- Capacity
- 45 devices
- Tier layout
- 15 + 15 + 15
- Overall size

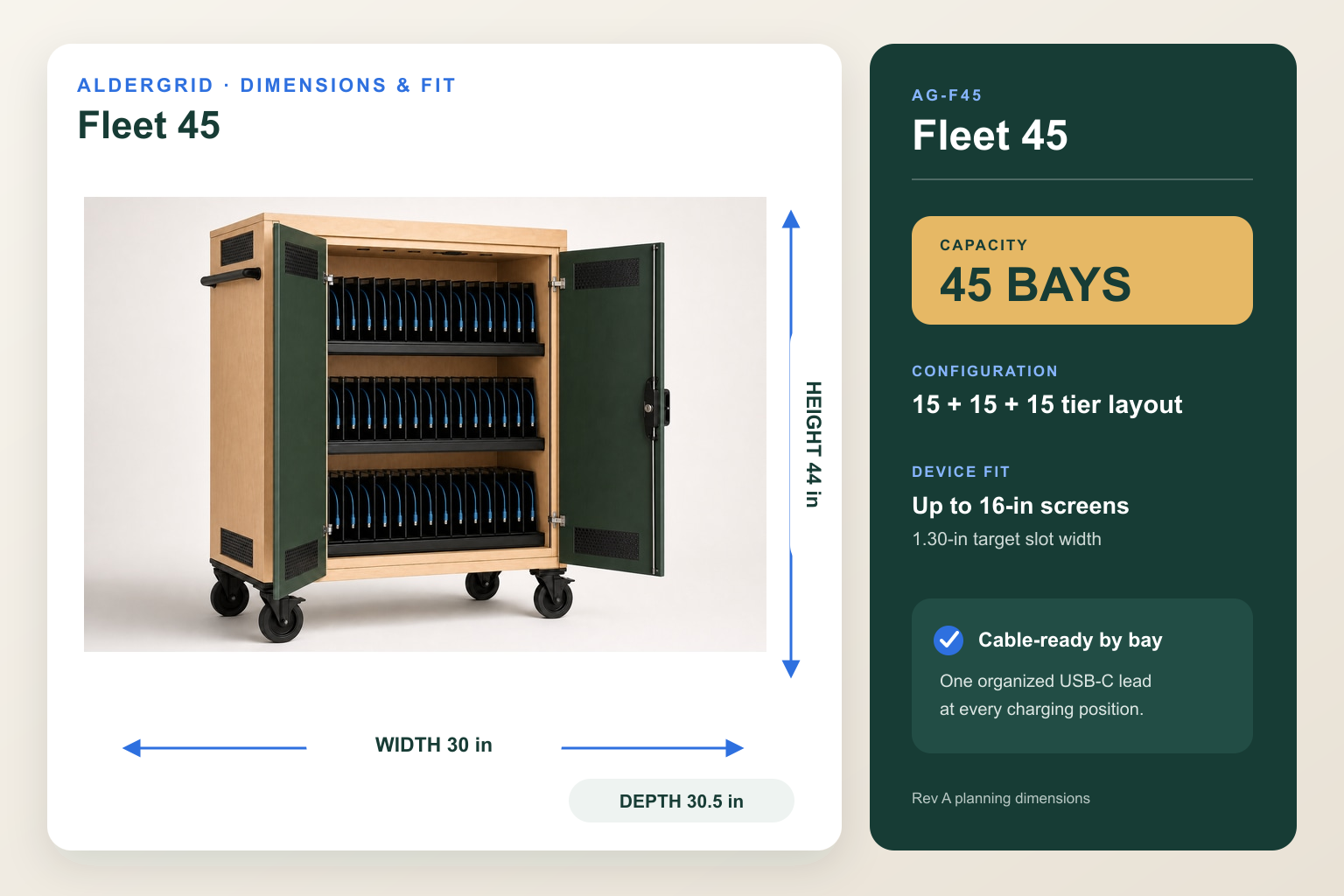

- 30 W × 30.5 D × 44 H in
- Device fit
- Up to 16-in screens
Built around the fleet
45 labeled bays. One calm routine.

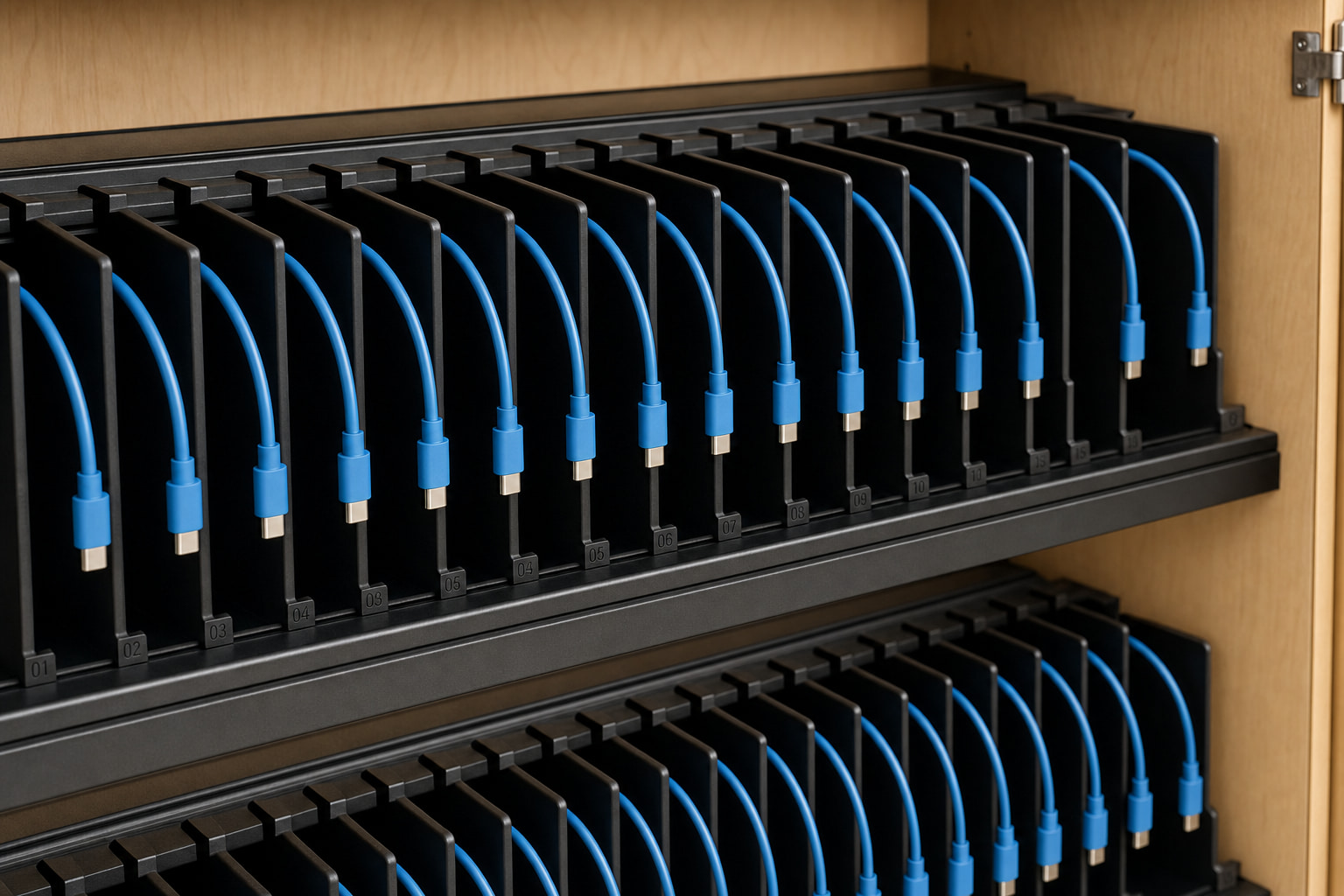

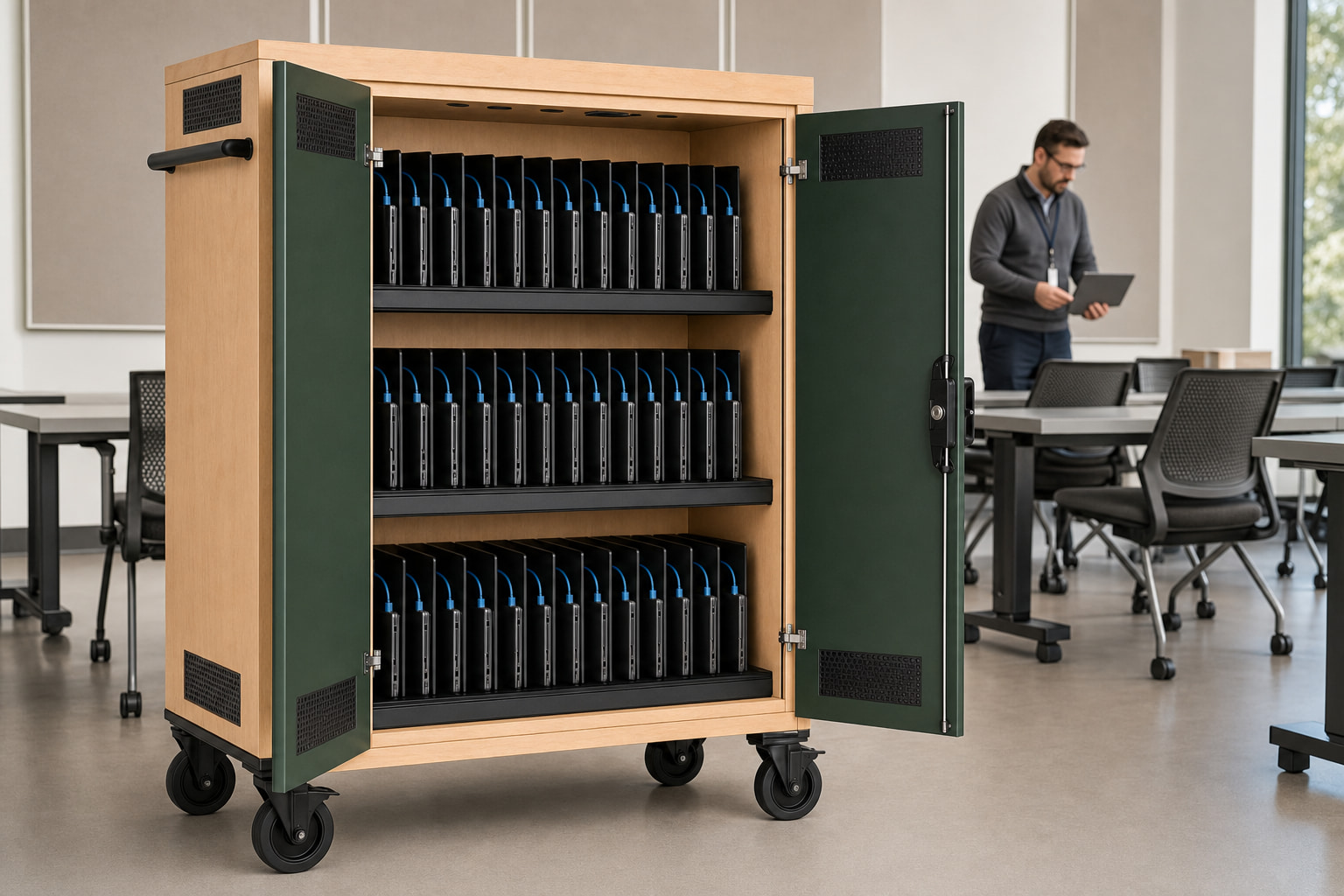

District pools, lecture halls, and large clinical or training fleets. Each bay receives an included, labeled USB-C lead; cabinet-level management allocates power across the fleet. Twin locking doors open 270 degrees for loading and service, while perforated steel shelves keep device weight and cable paths inside a replaceable metal system.
Fully assembled
Cabinet, casters, lock, cable set, and approved power package arrive integrated.
Serviceable by zones
15 + 15 + 15 power and cable zone(s), matched to the shelf layout.
Secure mobility
Three-point keyed lock, through-bolted handle, and four 5-inch casters.
Rev A specification
Planning dimensions and performance targets.
- SKU
- AG-F45
- Family
- Fleet
- Capacity
- 45 bays
- Tier layout
- 15 + 15 + 15
- Overall envelope
- 30 W × 30.5 D × 44 H in
- Cabinet depth
- 26 in
- Target slot width
- 1.3 in
- Maximum screen
- 16 in
- Nominal cabinet allocation
- 1200 W
- Per-port peak target
- 65 W
- Input target
- 120 VAC · 60 Hz · 12 A managed maximum
- Configuration
- Pre-wired USB-C PD · fully assembled
Certification gate
Final ratings, components, wiring, thermal limits, labels, and claims remain subject to qualified engineering and NRTL review. No UL, ETL, BIFMA, GREENGUARD, or medical-grade certification is claimed.
See the full safety approachAdd another size
Build a mixed-fleet project.
Compact, classroom, and high-density models share the same finish and operating logic.
