1 / 4Concept renderings. Exact capacity and construction are controlled by the Rev A technical specification.
AG-C30 · 30-device laptop & Chromebook charging cart
Class 30
The classroom workhorse, sized around the clearest channel-demand signal.
Institutional project pricing is quote-based. Freight, taxes, installation, options, and volume terms are separate.
- Capacity
- 30 devices
- Tier layout
- 15 + 15
- Overall size

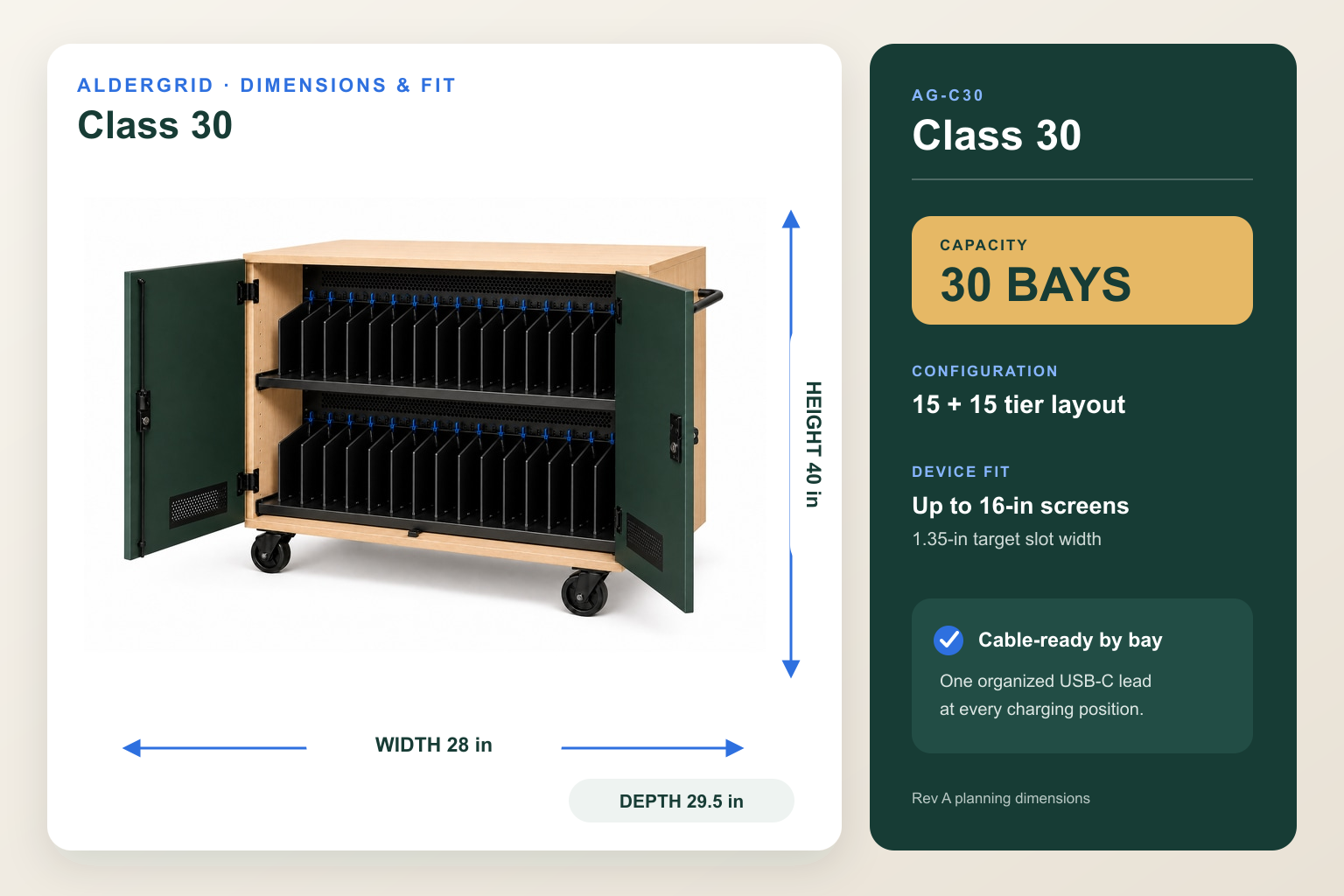

- 28 W × 29.5 D × 40 H in
- Device fit
- Up to 16-in screens
Built around the fleet
30 labeled bays. One calm routine.

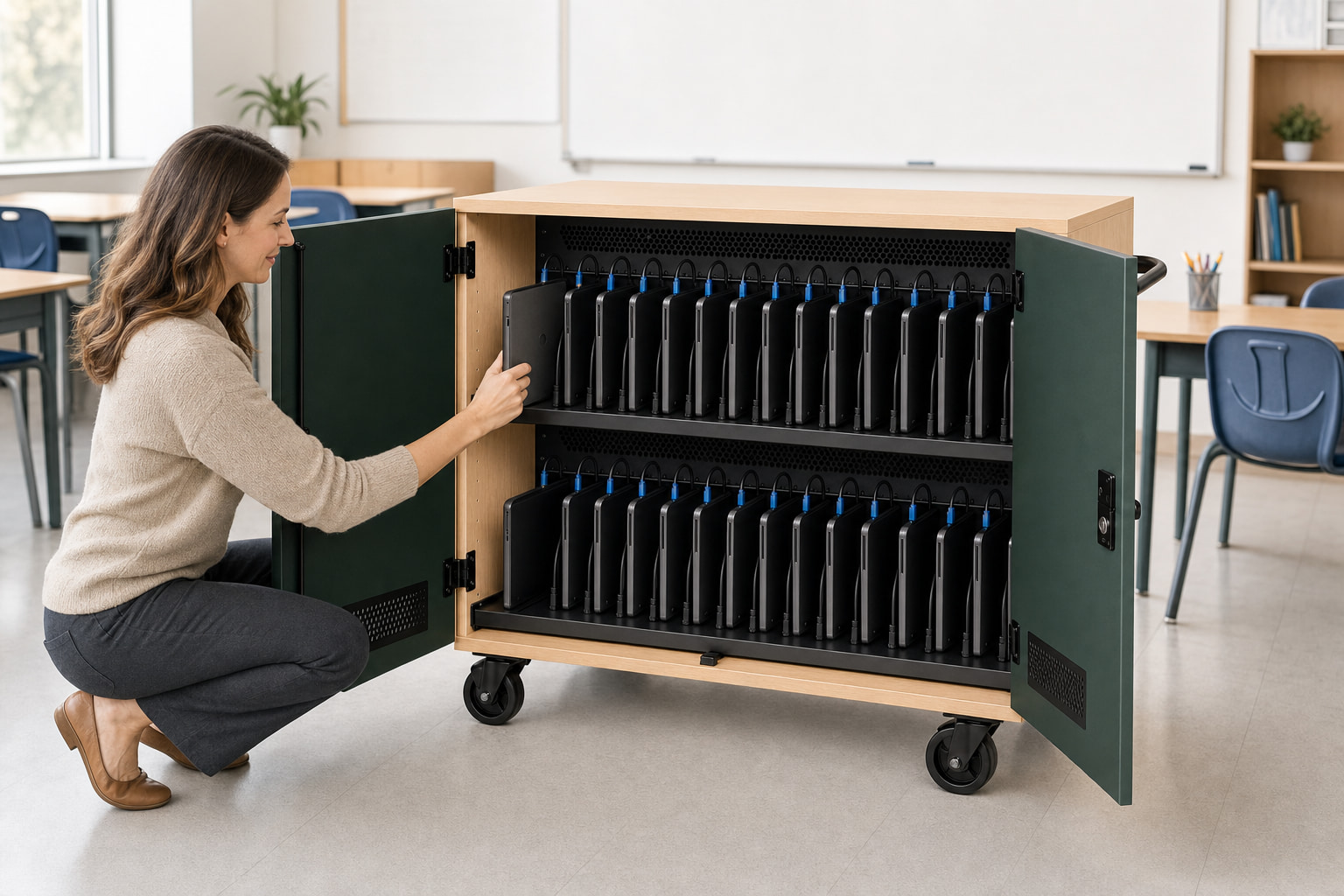

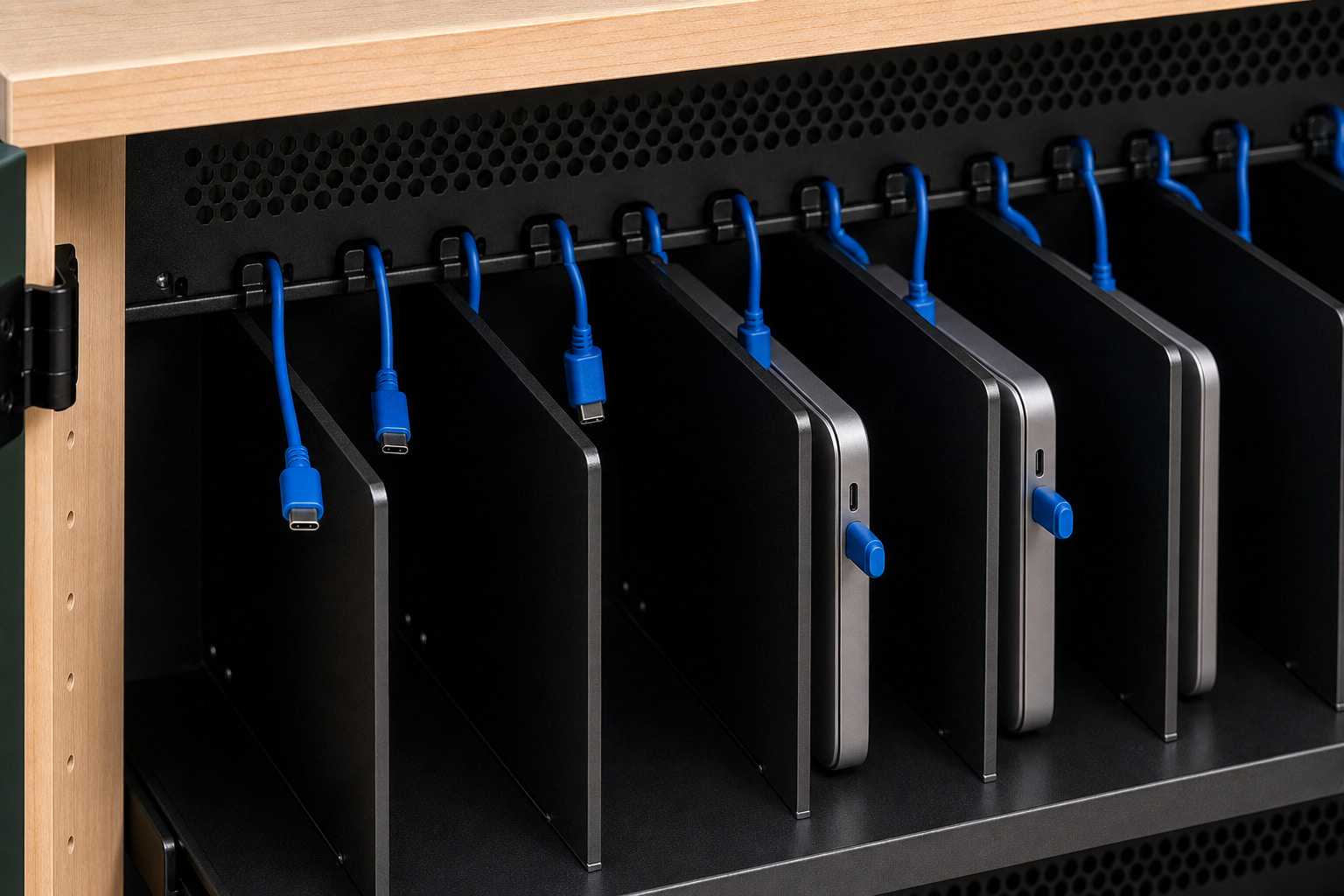

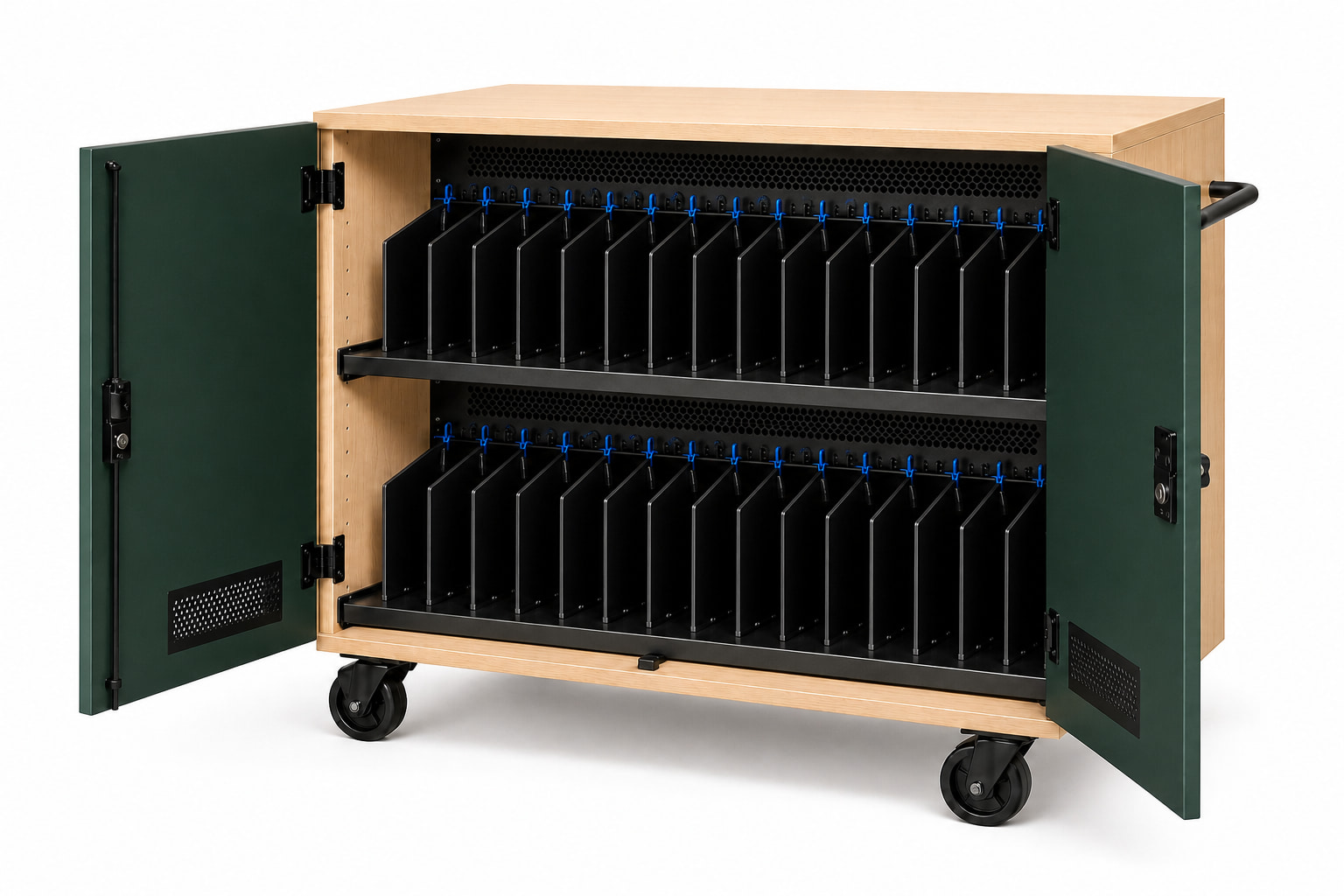

Full classrooms, mobile testing fleets, and district standardization. Each bay receives an included, labeled USB-C lead; cabinet-level management allocates power across the fleet. Twin locking doors open 270 degrees for loading and service, while perforated steel shelves keep device weight and cable paths inside a replaceable metal system.
Fully assembled
Cabinet, casters, lock, cable set, and approved power package arrive integrated.
Serviceable by zones
15 + 15 power and cable zone(s), matched to the shelf layout.
Secure mobility

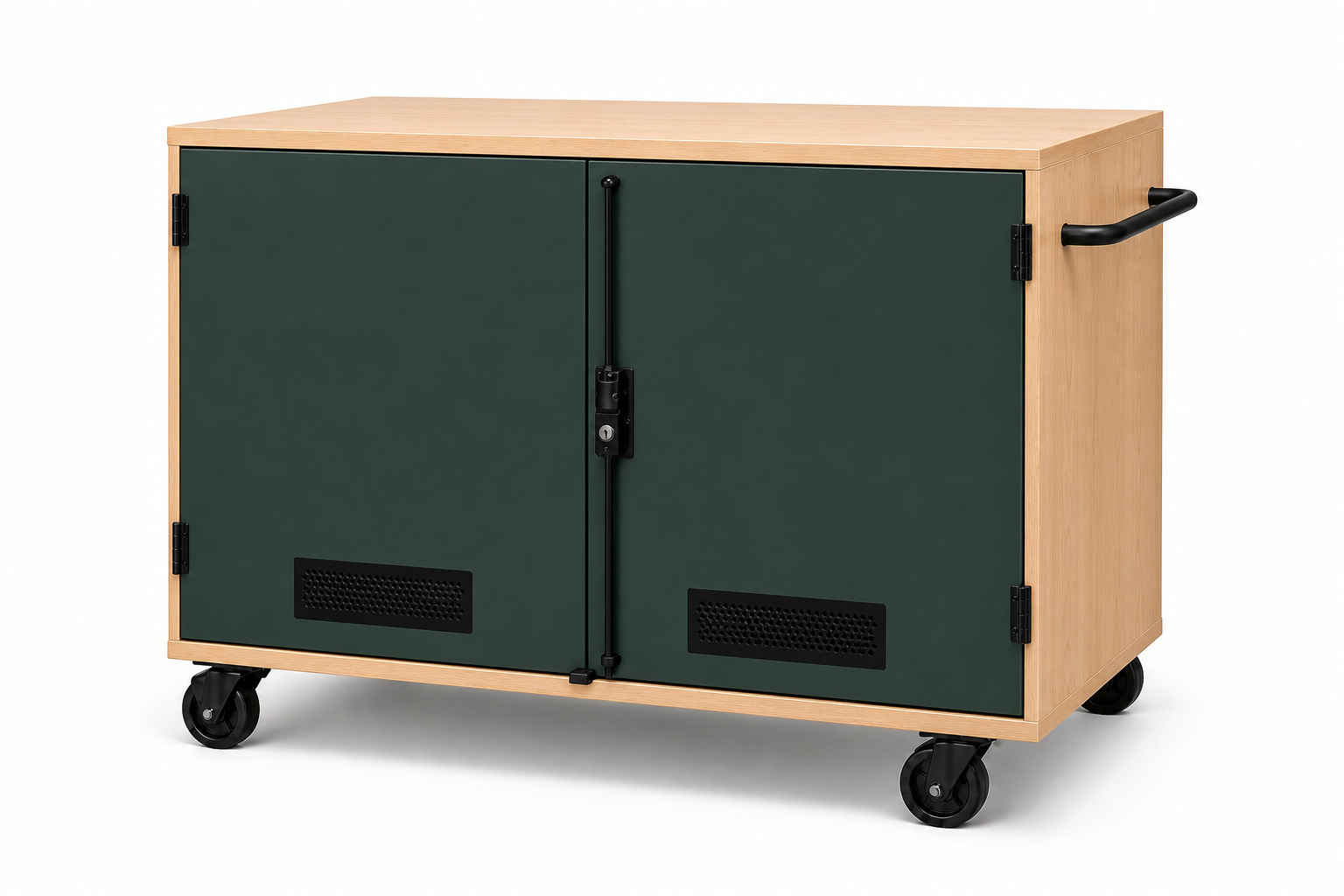

Three-point keyed lock, through-bolted handle, and four 5-inch casters.
Rev A specification
Planning dimensions and performance targets.
- SKU
- AG-C30
- Family
- Class
- Capacity
- 30 bays
- Tier layout
- 15 + 15
- Overall envelope
- 28 W × 29.5 D × 40 H in
- Cabinet depth
- 25 in
- Target slot width
- 1.35 in
- Maximum screen
- 16 in
- Nominal cabinet allocation
- 1200 W
- Per-port peak target
- 65 W
- Input target
- 120 VAC · 60 Hz · 12 A managed maximum
- Configuration
- Pre-wired USB-C PD · fully assembled
Certification gate
Final ratings, components, wiring, thermal limits, labels, and claims remain subject to qualified engineering and NRTL review. No UL, ETL, BIFMA, GREENGUARD, or medical-grade certification is claimed.
See the full safety approachAdd another size
Build a mixed-fleet project.
Compact, classroom, and high-density models share the same finish and operating logic.
