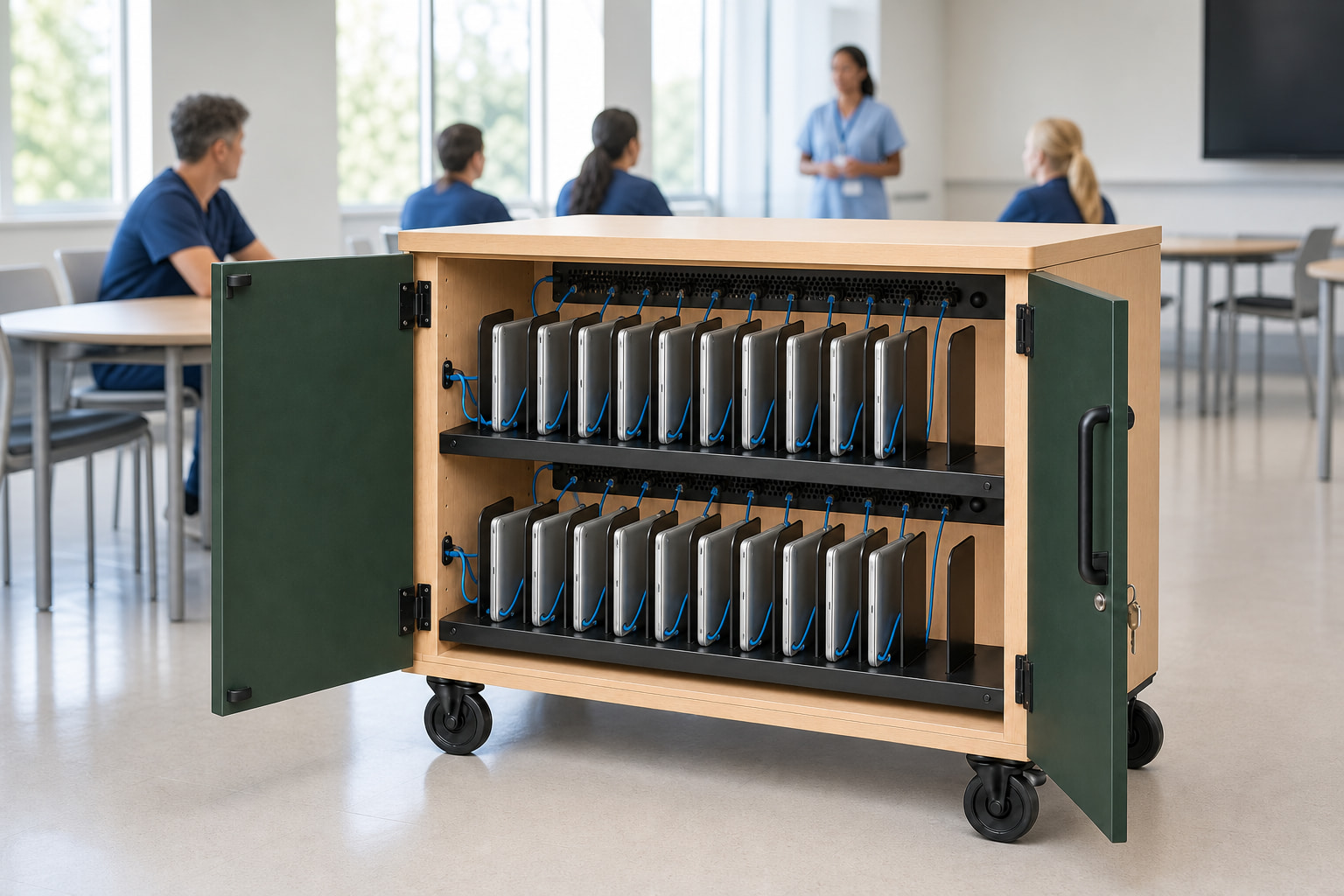

1 / 8Concept renderings. Exact capacity and construction are controlled by the Rev A technical specification.
AG-C20 · 20-device laptop & Chromebook charging cart
Class 20
A versatile two-tier cart for departmental device programs.
- Product status
- Controlled pre-production
- Ordering
- Institutional quote
Institutional project pricing is quote-based. Freight, taxes, installation, options, and volume terms are separate.
- Capacity
- 20 devices
- Tier layout
- 10 + 10

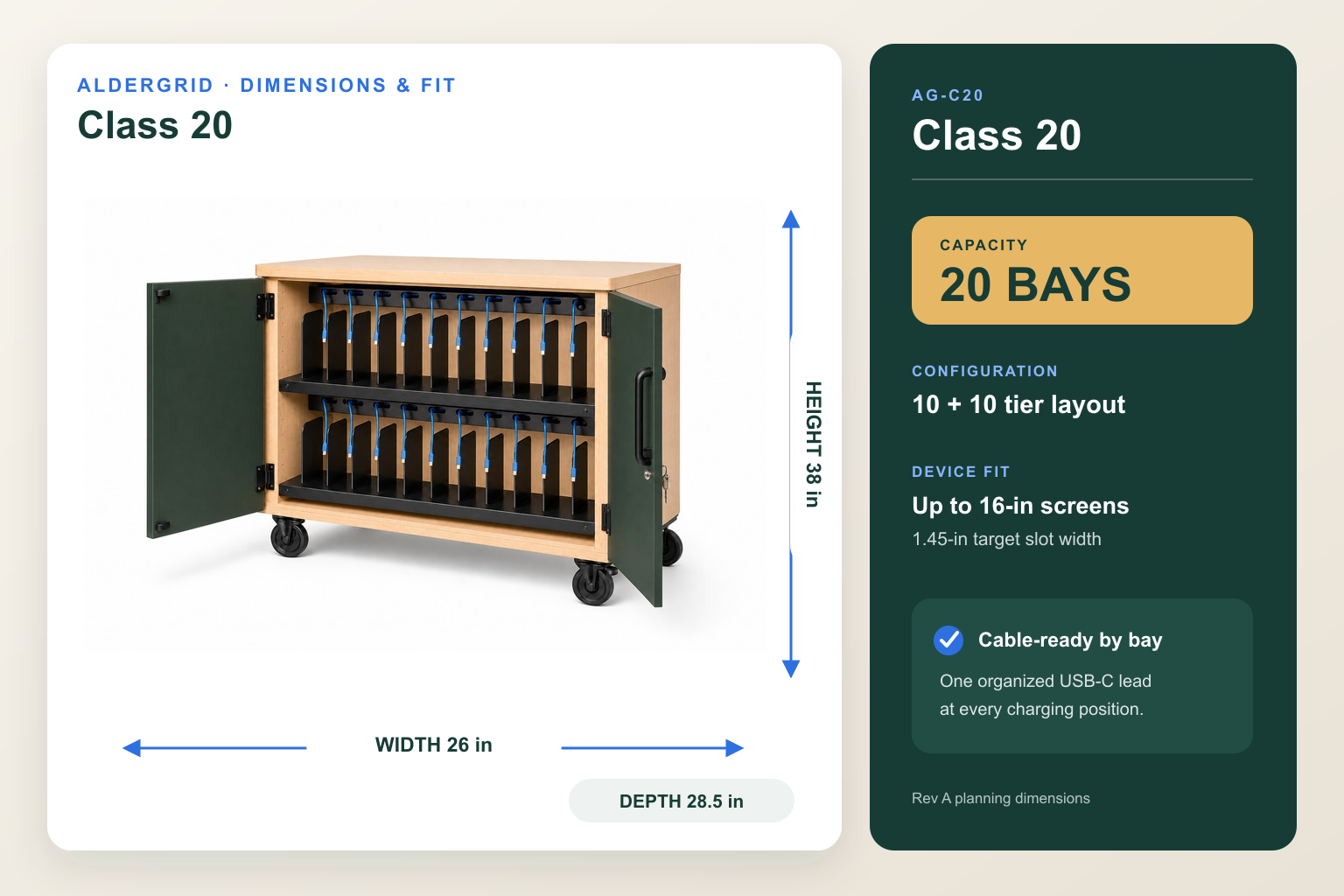

- Overall size
- 26 W × 28.5 D × 38 H in
- Device fit
- Up to 16-in screens
Choose by workflow, not capacity alone
When Class 20 is the right size.
Class 20 is the bridge between compact carts and classroom-scale models, with two equal tiers and a wider 16-inch device envelope.

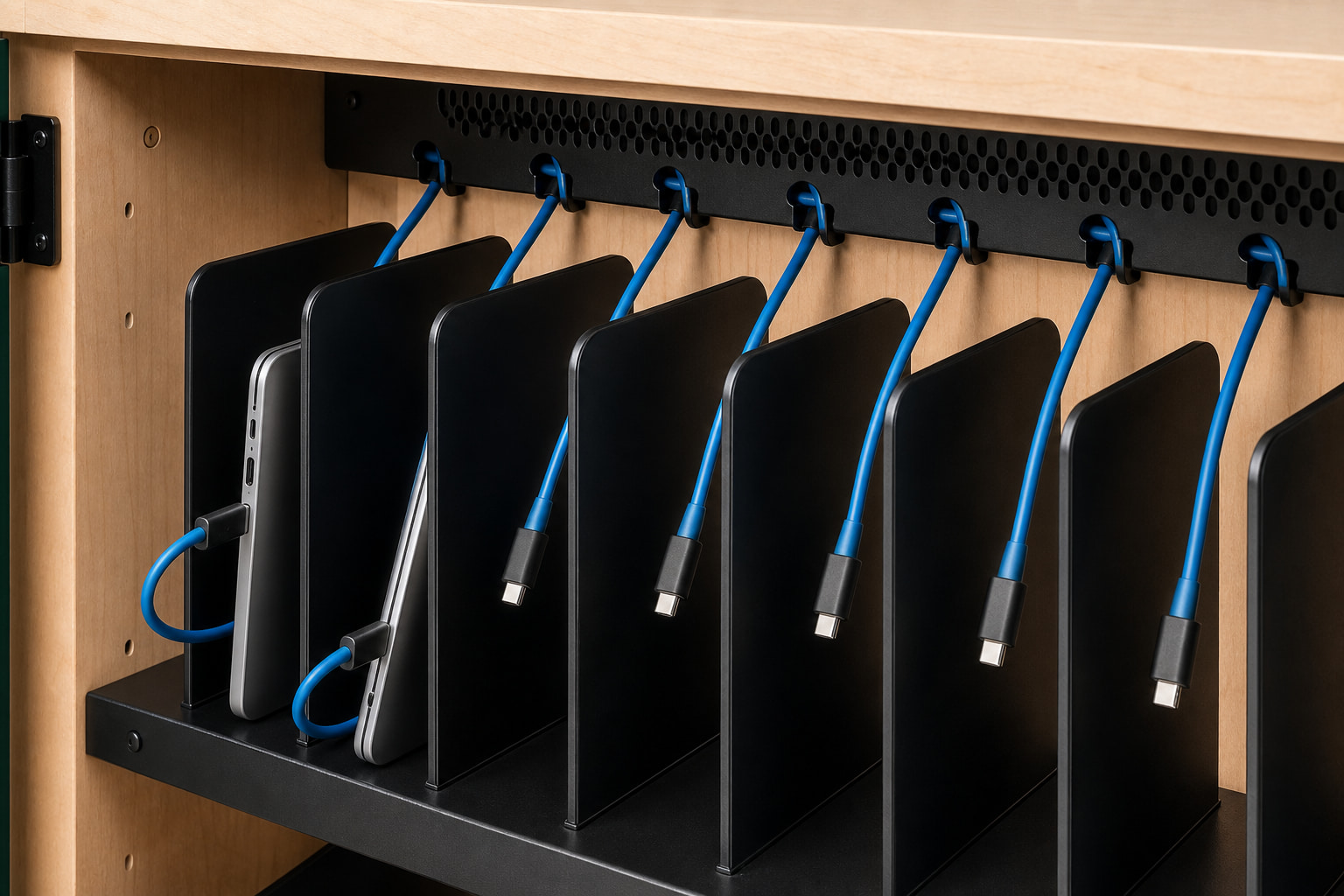

Small classes, STEM rooms, hospital departments, and shared staff fleets. Each bay receives an included, labeled USB-C lead; cabinet-level management allocates power across the fleet. Twin locking doors open 270 degrees for loading and service, while perforated steel shelves keep device weight and cable paths inside a replaceable metal system.
Best-fit applications
Start here when the program includes:
- Small classes and STEM rooms
- Departmental staff-device programs
- Healthcare IT and training teams outside patient vicinity
Confirm device dimensions, protective cases, cable type, room access, and charging requirements during project review.
Shared platform
Designed to make daily device handling predictable.
Fully assembled
Cabinet, casters, lock, cable set, and approved power package arrive integrated.
Serviceable by zones
10 + 10 power and cable zone(s), matched to the shelf layout.
Secure mobility
Three-point keyed lock, through-bolted handle, and four 5-inch casters.
Nearby capacities
Compare before you standardize.
The closest AlderGrid sizes share the same operating logic. Choose the smallest model that covers the working fleet plus a realistic spare-device allowance.
Rev A specification
Planning dimensions and performance targets.
- SKU
- AG-C20
- Family
- Class
- Capacity
- 20 bays
- Tier layout
- 10 + 10
- Overall envelope
- 26 W × 28.5 D × 38 H in
- Cabinet depth
- 24 in
- Target slot width
- 1.45 in
- Maximum screen
- 16 in
- Nominal cabinet allocation
- 1200 W
- Per-port peak target
- 65 W
- Input target
- 120 VAC · 60 Hz · 12 A managed maximum
- Configuration
- Pre-wired USB-C PD · fully assembled
Certification gate
Final ratings, components, wiring, thermal limits, labels, and claims remain subject to qualified engineering and NRTL review. No UL, ETL, BIFMA, GREENGUARD, or medical-grade certification is claimed.
See the full safety approachClass 20 questions
Answers for IT and procurement teams.
How many devices does Class 20 hold?
Class 20 provides 20 labeled bays in a 10 + 10 tier layout.
What laptops and Chromebooks fit?
The planning envelope supports screens up to 16inches with a target slot width of 1.45 inches. Confirm the exact device and protective case before ordering.
Are USB-C charging cables included?
The planned configuration is fully assembled with one labeled USB-C lead routed to every bay. Final power compatibility must be checked against the exact device fleet.
What is the current certification status?
AlderGrid is a controlled pre-production platform. Final ratings, components, thermal limits, labels, and certification claims remain subject to qualified engineering and third-party evaluation.
Add another size
Build a mixed-fleet project.
Compact, classroom, and high-density models share the same finish and operating logic.
Compare all models
